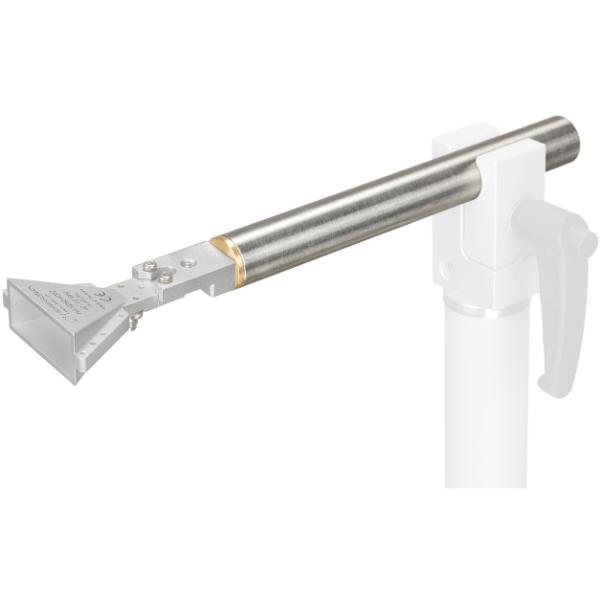

HA 9252-4067, 40-67 GHz, Standard Gain Horn Antenna

Pyramidal standard gain horn Antenna optimized for gain at 1 meter

  • 40 - 67 GHz
  • 15 - 18.5 dBi Gain

PARTNER:

MARKETS:

CATEGORIES:

TEST STANDARDS:

Data Sheet

SPECIFICATIONS



HA 9252-4067 Standard Gain Horn Antenna

 The standard gain horn Antenna HA 9252-4067 is a linear polarized horn antenna for the frequency range 40 GHz to 67 GHz.  15-18.5 dBi gain, optimized for 1-meter gain





 Frequency Range: 40 GHz - 67 GHz
  Polarization: linear
  Pattern Type: directional
  Material: Aluminum
   Max. Peak Input Power 10 W
  Connector: 1.85mm
  Impedance: 50 OHM nominal
  VSWR Typ. < 1.5
  Length: 61 mm
  Width: 56 mm
  Height: 24 mm
  Weight: 30g
  Accessory Adapter 22 mm – ¼"
