HA 9250-818, 8-18 GHz, 20dB, Standard Gain Horn Antenna

Pyramidal standard gain horn Antenna optimized for far-field gain

  • 8 - 18 GHz
  • 20 dBi Gain

PARTNER:

MARKETS:

CATEGORIES:

TEST STANDARDS:

Data Sheet

Radiation Pattern

SPECIFICATIONS

HA 9250-818 · Pyramidal Standard Gain Horn Antenna

Linear-polarized, octave-band horn with nearly constant high gain and directivity. Ideal for high field-strength immunity testing and high-sensitivity receive applications. N-female connector for robust power handling.

Key Specifications (at a glance)

  • Frequency Range: 8–18 GHz

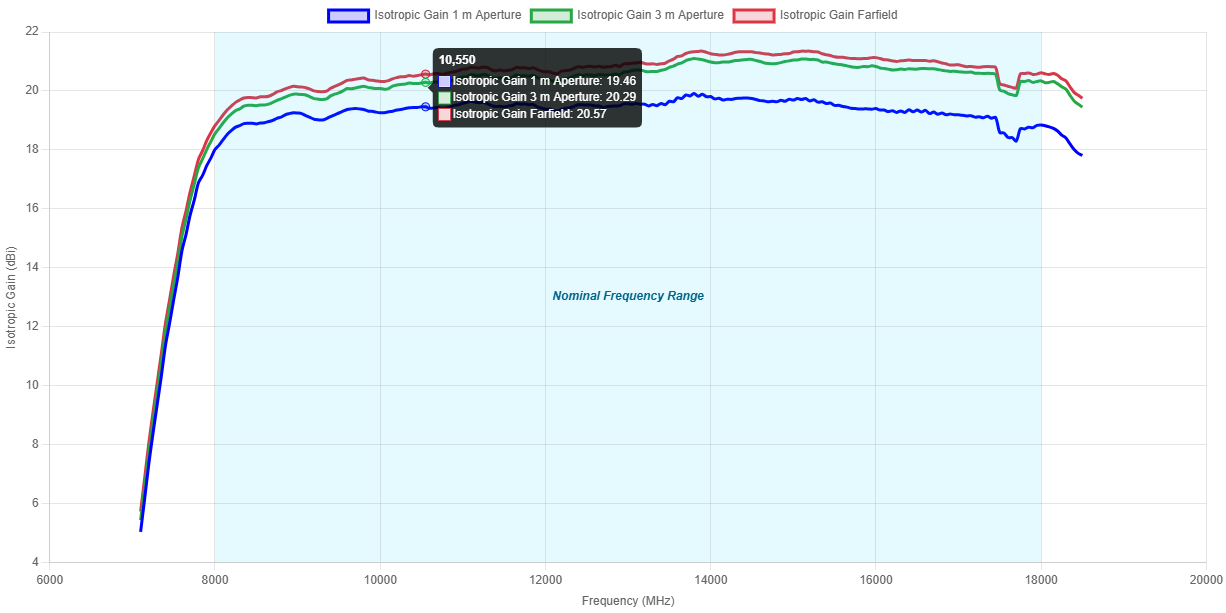

  • Gain: typ. 20 dBi

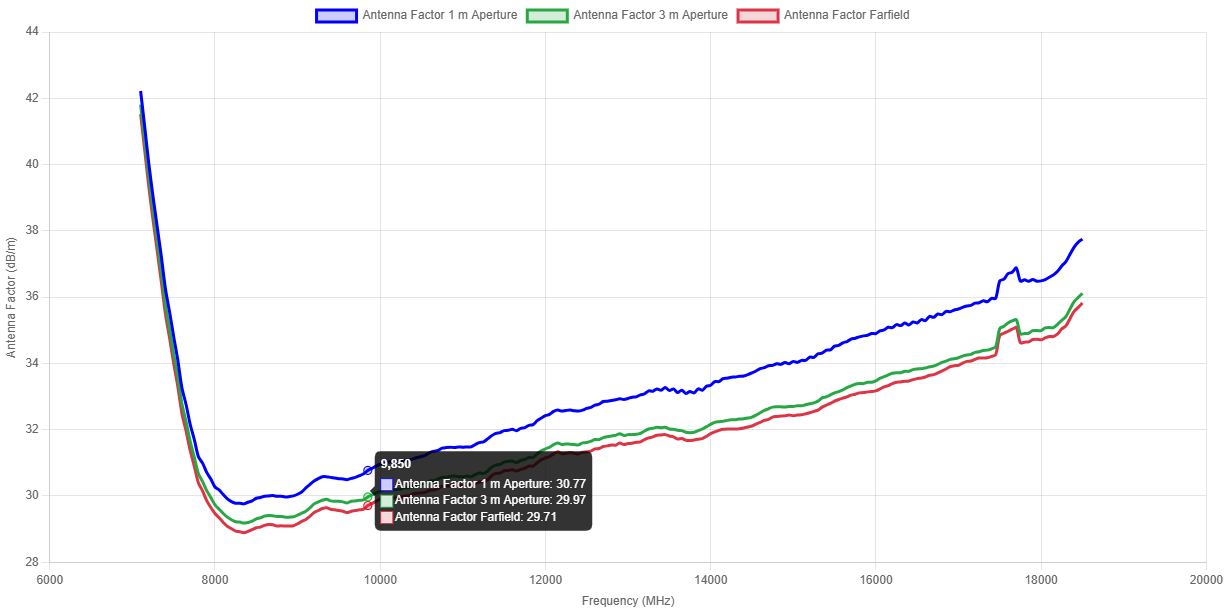

  • Antenna Factor: typ. 29–37 dB/m

  • VSWR: typ. < 2

Why HA 9250-818

  • High directivity & nearly constant gain across the full 8–18 GHz octave.

  • 300 W continuous power capability via N-female interface.

  • Purpose-built for EMC immunity scenarios requiring elevated field strengths.

  • Lightweight aluminum housing with Ø 22 mm / L 200 mm mast mount for stable positioning.

Detailed Specifications

ParameterValue
Frequency Range 8 – 18 GHz
Gain typ. 20 dBi
Antenna Factor typ. 29 – 37 dB/m
Nominal Impedance 50 Ω
Continuous Power 300 W
VSWR typ. < 2
3 dB Beamwidth (E-plane) typ. 15°
3 dB Beamwidth (H-plane) typ. 16°
Housing Material Aluminium
Housing Dimensions (W×H×L) 156 × 115 × 240 mm
Mounting Ø 22 mm, L 200 mm
Weight approx. 0.7 kg
RF Connector N (female)

Notes: All values are typical unless otherwise specified.
